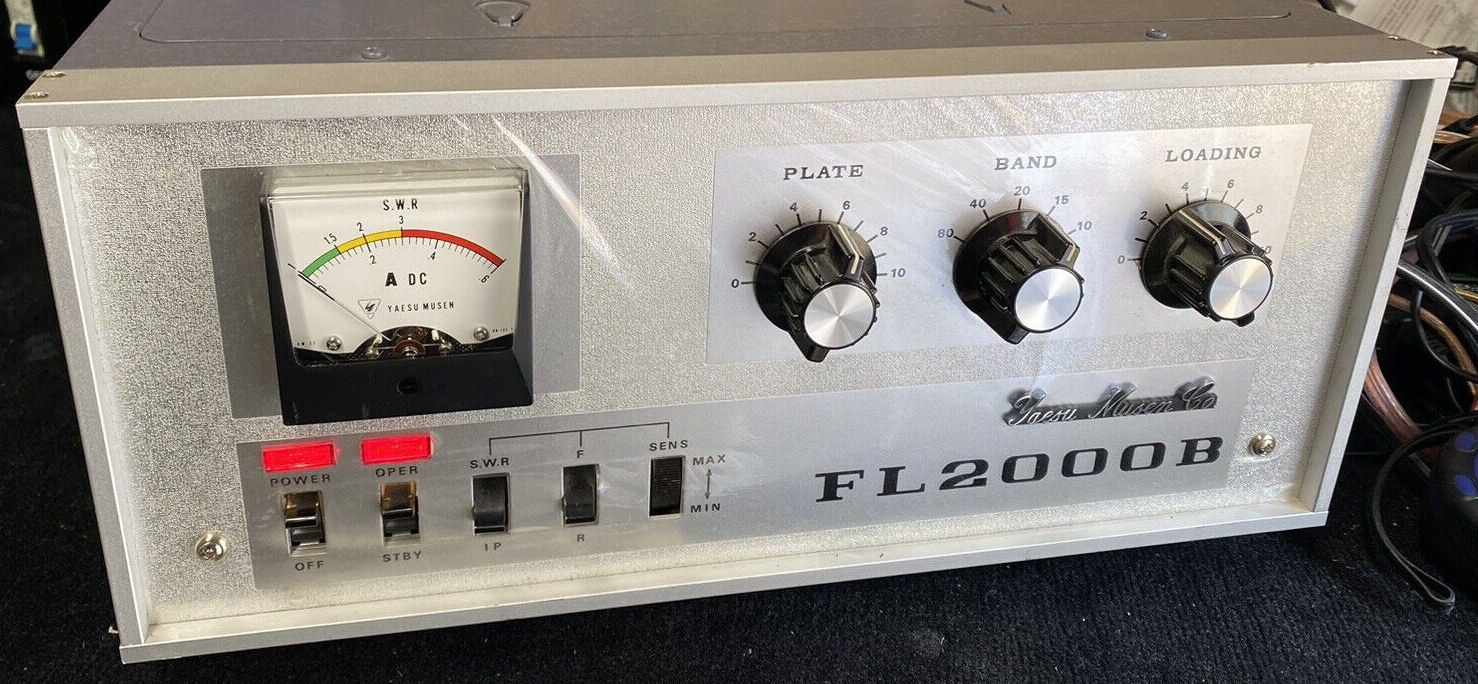

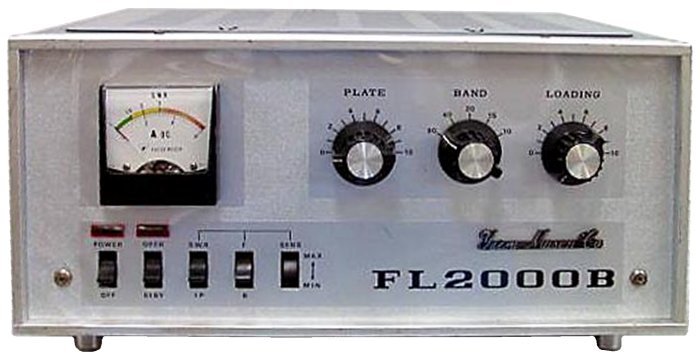

Yaesu FL-2000B
| Type: |
All-mode HF Linear Amplifier |
| Frequency Range: |
10-80 m |
| Voltage: |
Mains |
| Current Drain: |
Max 17 A @ 117 VAC
Max 9 A @ 230 VAC |
| Drive power: |
100 W |
| Maximum Power output: |
SSB: 800 W (PEP)
CW: 500 W |
| Impedance: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
Japan, 1969-197x |
| Other: |
2 x 572B |
| Related Documents: |
User Manual (1.00 MB) |
 |
